CA SERIES

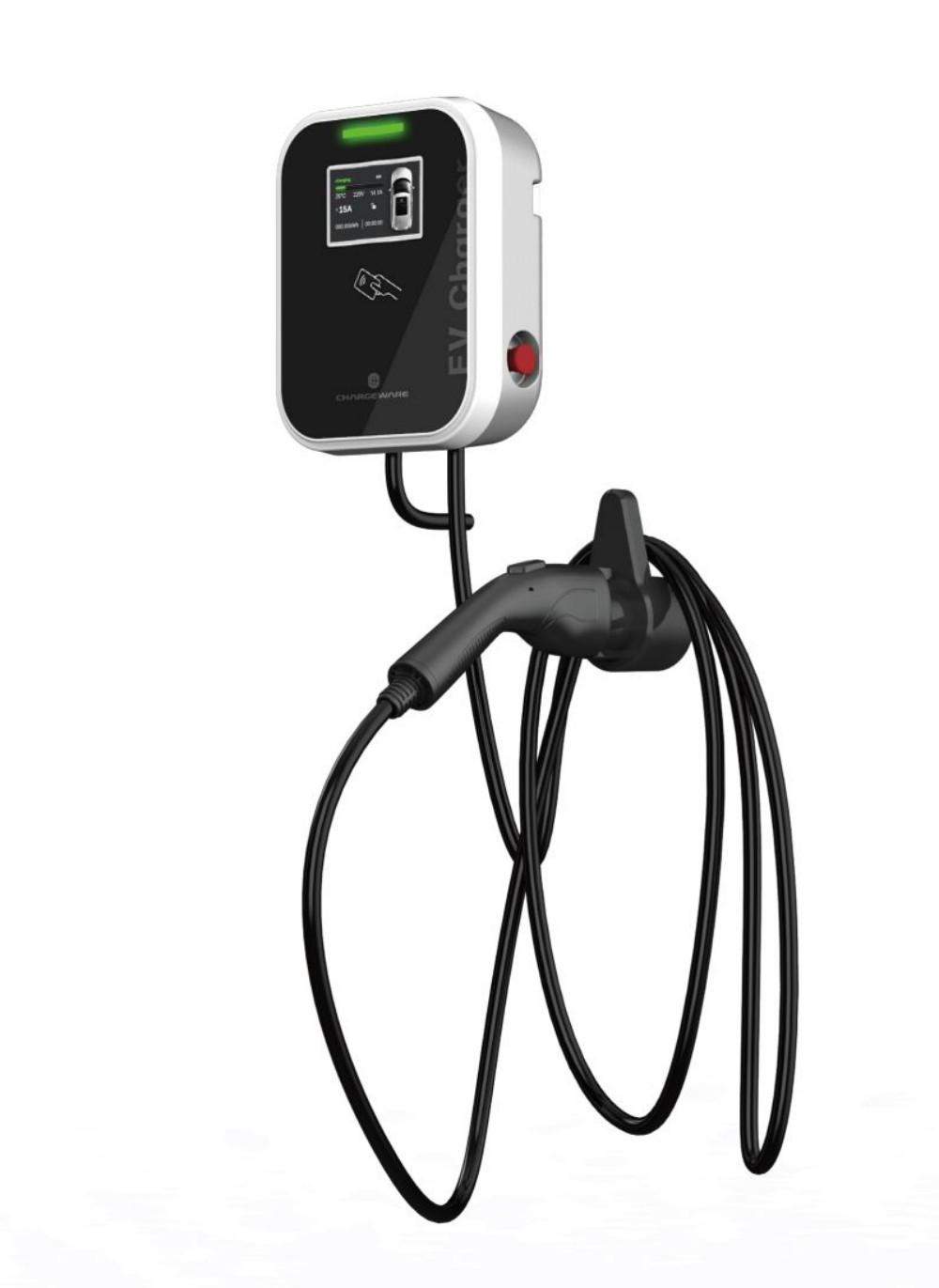

WALL-MOUNTED LEVEL 2 EV CHARGER

The Chargeware CA Series is a wall-mounted Level 2 EV charger designed for modern homes, delivering up to 11.52 kW (48 A) of fast and efficient charging. Supporting 120 / 208 / 240 V input, it combines powerful performance with elegant design and durable construction. With IP54-rated protection and high-quality PC+ASA material, the CA Series ensures safe, stable operation in all weather conditions — ideal for residential garages, carports, and private parking spaces.

CONTACT US FOR MORE
  • FEATURES
  • SPECIFICATIONS

Description

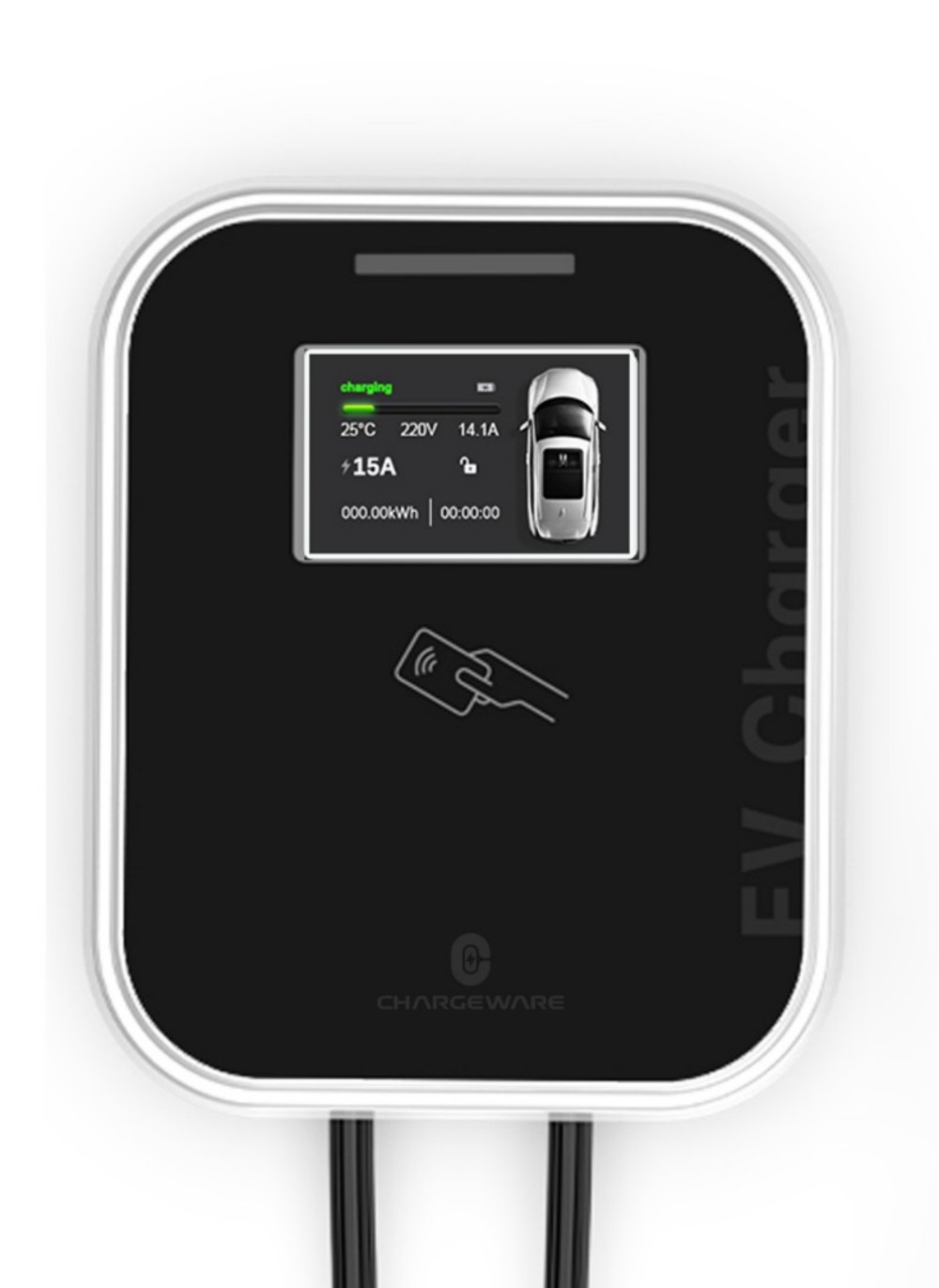

Engineered for convenience and safety, the CA Series features a full-color LCD display that provides intuitive real-time charging information, including current, voltage, and energy consumption. The charger supports multiple communication options such as Bluetooth, LAN, 4G, and Wi-Fi, enabling OCPP 1.6J / 2.0.1 connectivity for smart charging management. Its advanced protection suite includes over-voltage, under-voltage, over-current, overheating, leakage, grounding, and lightning protection. Certified to UL2594 and UL2231 standards and backed by a 24-month warranty, the CA Series brings reliable, intelligent charging to every home.

POWER
Input/Output Power Rating & Maximum Current
11.52kW (240V AC, 16~48A)
Input/Output Voltage
120/208/240V ±15%, 50/60Hz
Adjustable Current
16/24/32/40/48A
Connector Type
Type 1 (SAE J1772)
Cable
24ft (7.31m) commercial grade
Protection
Over voltage, Under voltage, Overheating, Overcurrent, Leakage, Grounding, Lightning protection
Power Cord
NEMA 14-50 Plug / Hardwire
OPERATIONAL RATINGS
Enclosure Rating
IP54
Operating Temperature Range
-22⁰F ~ 122⁰F (-30⁰C ~ 50⁰C)
Storage Temperature Range
-40⁰F ~ 185⁰F (-40⁰C ~ 85⁰C)
Installation

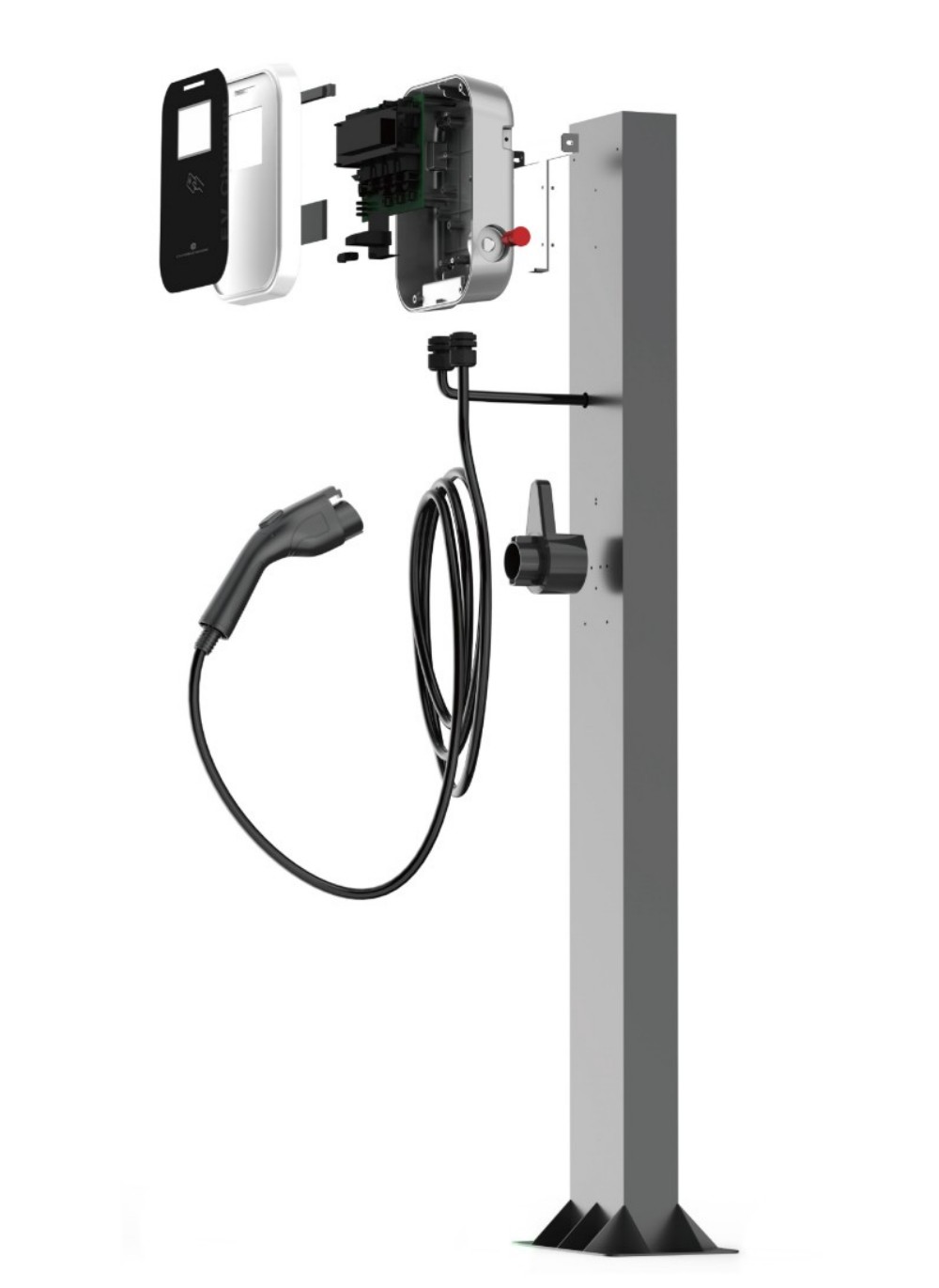

Column mounted / Wall mounted
Dimensions(H × W × D)
11.1 x 9.1 x 3.5 inches (282 × 230 × 90 mm)
Weight Total
13.2lbs (6kg)
USER INTERFACE
Status Indicator
LCD Screen (4.3 Inch)/APP/Indicator light
Connectivity
Bluetooth/LAN/4G/WiFi
Communication Protocols
OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)
Charging Modes
Plug and charge/Schedule charging/APP control
APP
Charging remote controllable & OTA supported
CERTIFICATION & STANDARDS
Safety & Compliance
UL2594, UL2231
EMC Compliance
FCC Part-15
Warranty
24 Months
Certification
COMPATIBILITY
*Optional Type 1 (J1772) to NACS adapter available
HARDWIRED
NEMA 14-50
Type 1-J1772
*NACS
